Swing-Away Height Restriction – 3–6 m Width (Bolt-Down)

Mannus SKU: 3-050-3000-HBS50

Estimated Shipping Widget will be displayed here!

  • SKU 3-050-3000-HBS50

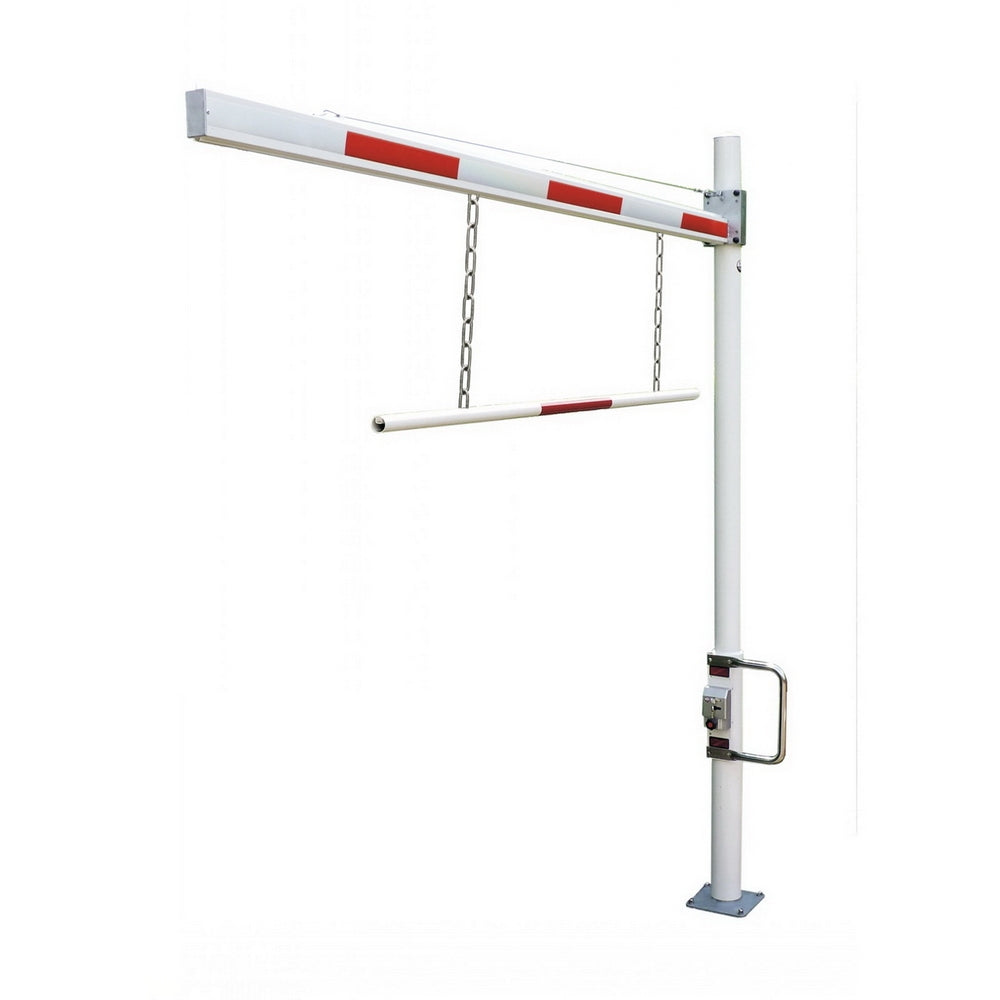

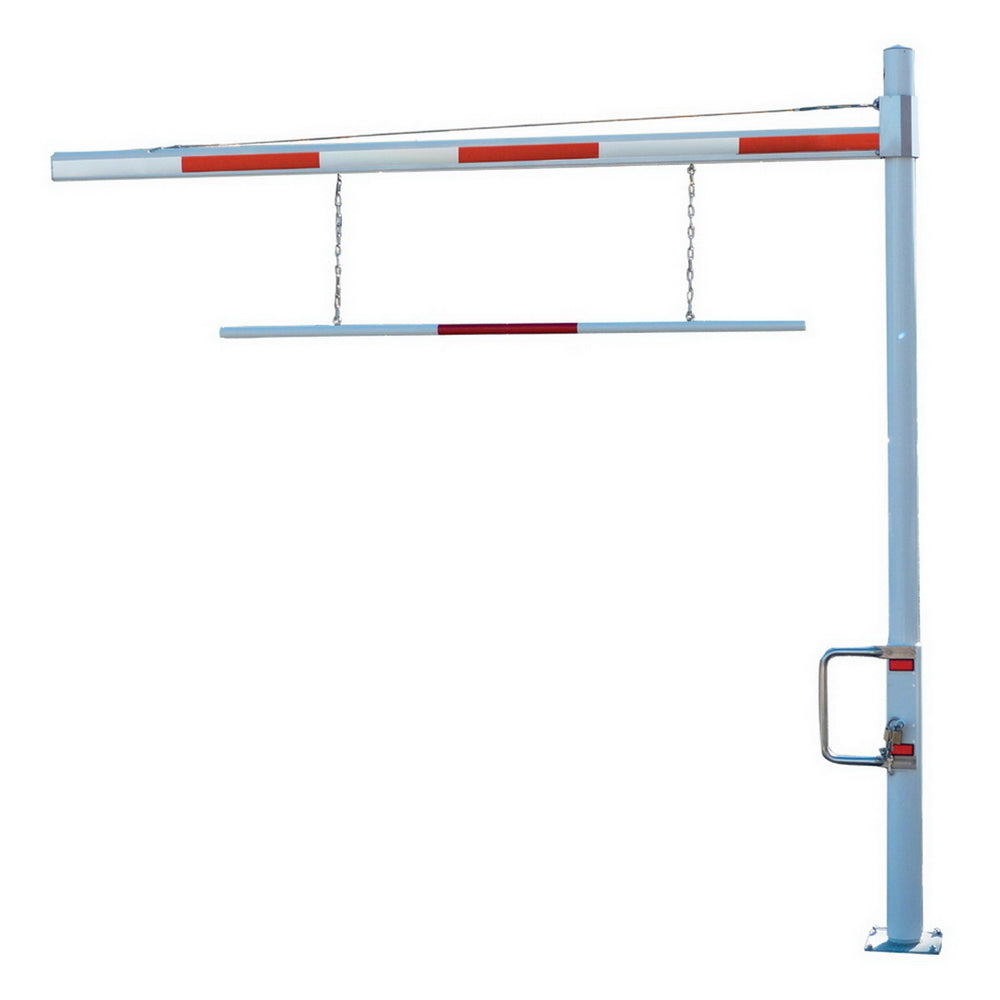

A rotating height restriction barrier with continuously adjustable clearance height.
Designed for car parks, industrial sites, depots and service roads where vehicle height control is required.
Hot-dip galvanised steel construction with aluminium crossbeam, bolt-down installation and multiple locking options.

Key features

  • Rotating height restriction barrier with adjustable clearance height

  • Maximum clearance height:

    • Up to 2.8 m (HBS 50)

    • Up to 3.8 m (HBS 54)

  • Total system height:

    • HBS 50: 3.0 m above ground

    • HBS 54: 4.0 m above ground

  • Hot-dip galvanised steel components for long-term corrosion protection

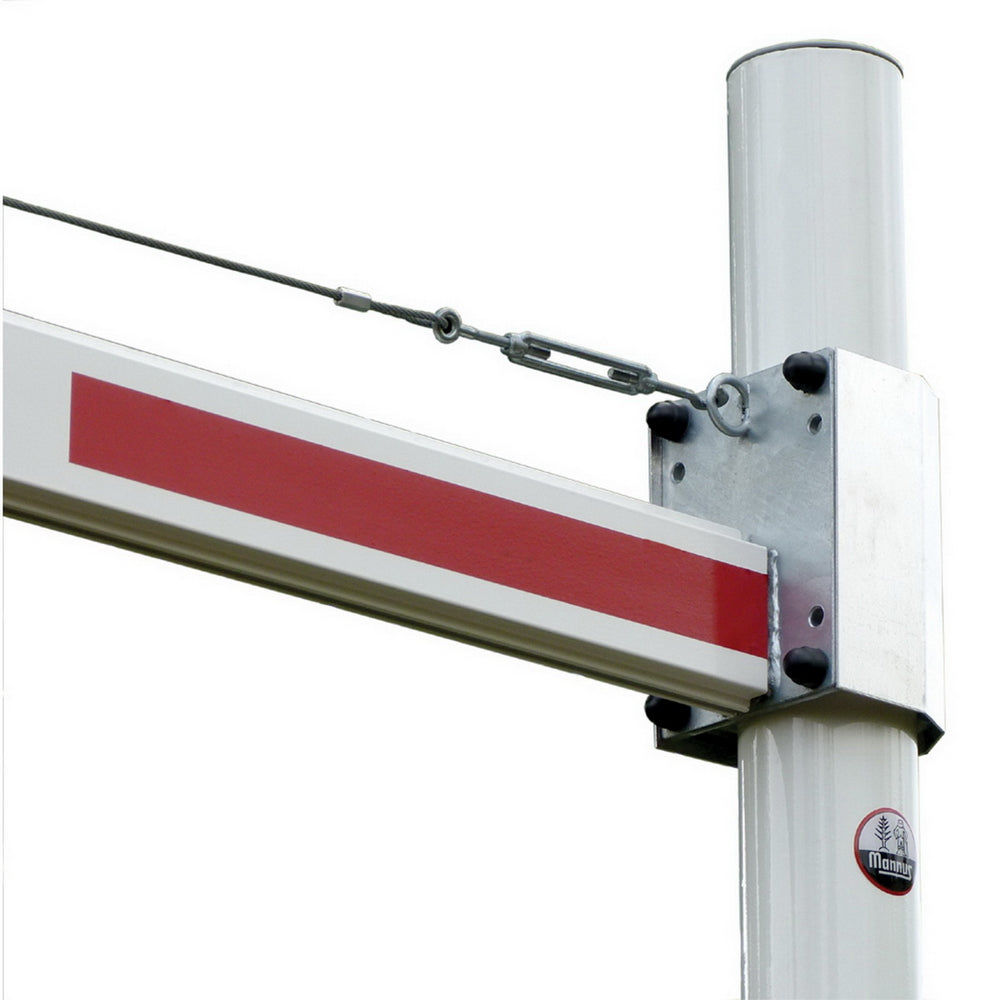

  • Heavy-duty steel pivot post Ø121 × 4.0 mm

  • Aluminium crossbeam 86 × 46 mm with integrated sign / advertising channel

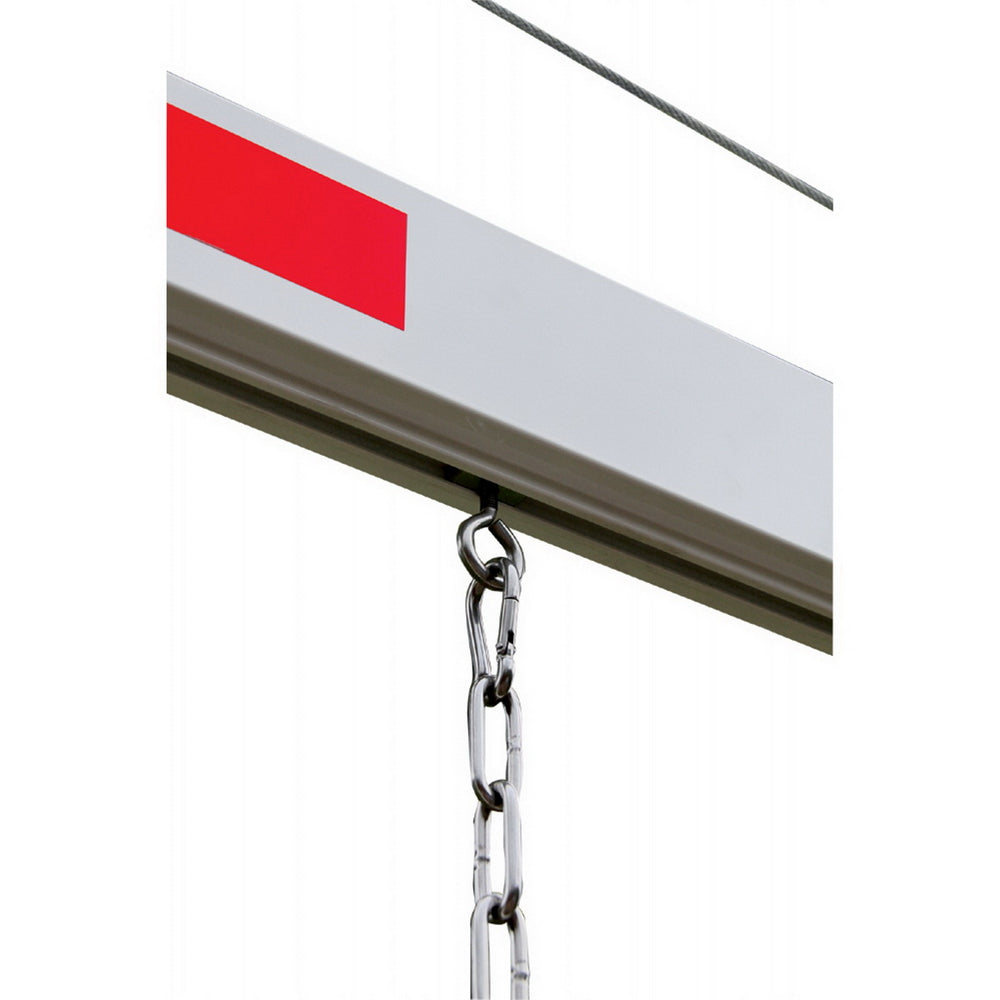

  • Cable-reinforced crossbeam for added strength

  • Bolt-down installation (base plate mounting)

  • Operating height: 0.7 m above ground

  • Can be locked with padlock (accessory) or optional fire brigade triangle / profile cylinder lock

  • Rotation stops at every 90° position

  • Suitable for clear widths from 3.0 to 12.0 m

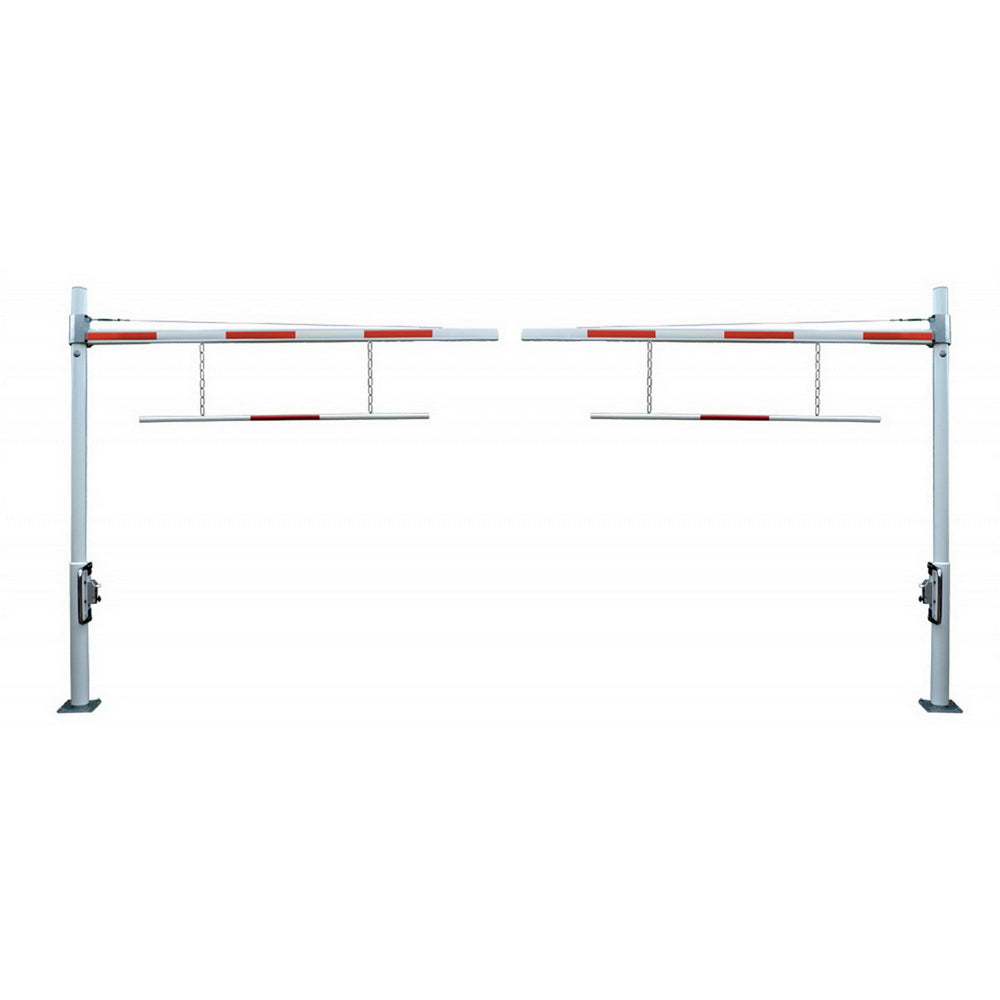

  • For widths ≥ 6.0 m: opposing barrier configuration (two single units)

Technical specification

Product type:
Rotating height restriction barrier (Davit design)

Installation:
Bolt-down (surface mounted)

Material:

  • Steel components: hot-dip galvanised

  • Crossbeam: aluminium

Crossbeam height adjustment:
Continuously adjustable

Standard widths:
3.0 m – 6.0 m (longer spans available on request)

Rotation:
90° steps at main post

Locking:

  • Padlock (accessory)

  • Optional fire brigade triangle lock

  • Optional profile cylinder lock with automatic locking

Download product documents (PDF)

Installation manual

Download installation manual (PDF)

Variants

Variant - Max Clearance Height / Width Stock Quantity Price Total
2.8 m / 3000 mm 3-050-3000-HBS50
$2,712.00 excl. sales tax
In stock 100 pcs
$2,712.00 excl. sales tax
$0.00
2.8 m / 3500 mm 3-050-3500-HBS50
$2,758.00 excl. sales tax
In stock 100 pcs
$2,758.00 excl. sales tax
$0.00
2.8 m / 4000 mm 3-050-4000-HBS50
$2,803.00 excl. sales tax
In stock 100 pcs
$2,803.00 excl. sales tax
$0.00
2.8 m / 4500 mm 3-050-4500-HBS50
$2,850.00 excl. sales tax
In stock 100 pcs
$2,850.00 excl. sales tax
$0.00
2.8 m / 5000 mm 3-050-5000-HBS50
$2,898.00 excl. sales tax
In stock 100 pcs
$2,898.00 excl. sales tax
$0.00
2.8 m / 5500 mm 3-050-5500-HBS50
$2,943.00 excl. sales tax
In stock 100 pcs
$2,943.00 excl. sales tax
$0.00
2.8 m / 6000 mm 3-050-6000-HBS50
$2,990.00 excl. sales tax
In stock 100 pcs
$2,990.00 excl. sales tax
$0.00
3.8 m / 3000 mm 3-050-3000-HBS54
$2,885.00 excl. sales tax
In stock 100 pcs
$2,885.00 excl. sales tax
$0.00
3.8 m / 3500 mm 3-050-3500-HBS54
$2,932.00 excl. sales tax
In stock 100 pcs
$2,932.00 excl. sales tax
$0.00
3.8 m / 4000 mm 3-050-4000-HBS54
$2,977.00 excl. sales tax
In stock 100 pcs
$2,977.00 excl. sales tax
$0.00
3.8 m / 4500 mm 3-050-4500-HBS54
$3,022.00 excl. sales tax
In stock 100 pcs
$3,022.00 excl. sales tax
$0.00
3.8 m / 5000 mm 3-050-5000-HBS54
$3,069.00 excl. sales tax
In stock 100 pcs
$3,069.00 excl. sales tax
$0.00
3.8 m / 5500 mm 3-050-5500-HBS54
$3,114.00 excl. sales tax
In stock 100 pcs
$3,114.00 excl. sales tax
$0.00
3.8 m / 6000 mm 3-050-6000-HBS54
$3,159.00 excl. sales tax
In stock 100 pcs
$3,159.00 excl. sales tax
$0.00
