Arm Barrier with Counterweight and Swing Post – Hot-Dip Galvanized

Schake SKU: 411_71VPB

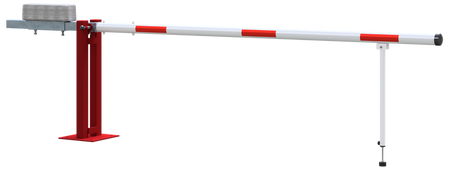

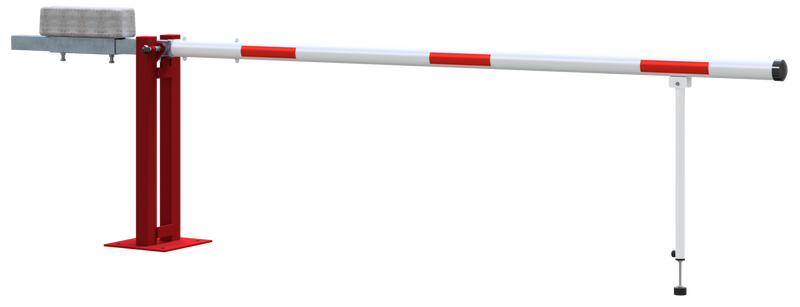

Access barrier with counterweight and swing post

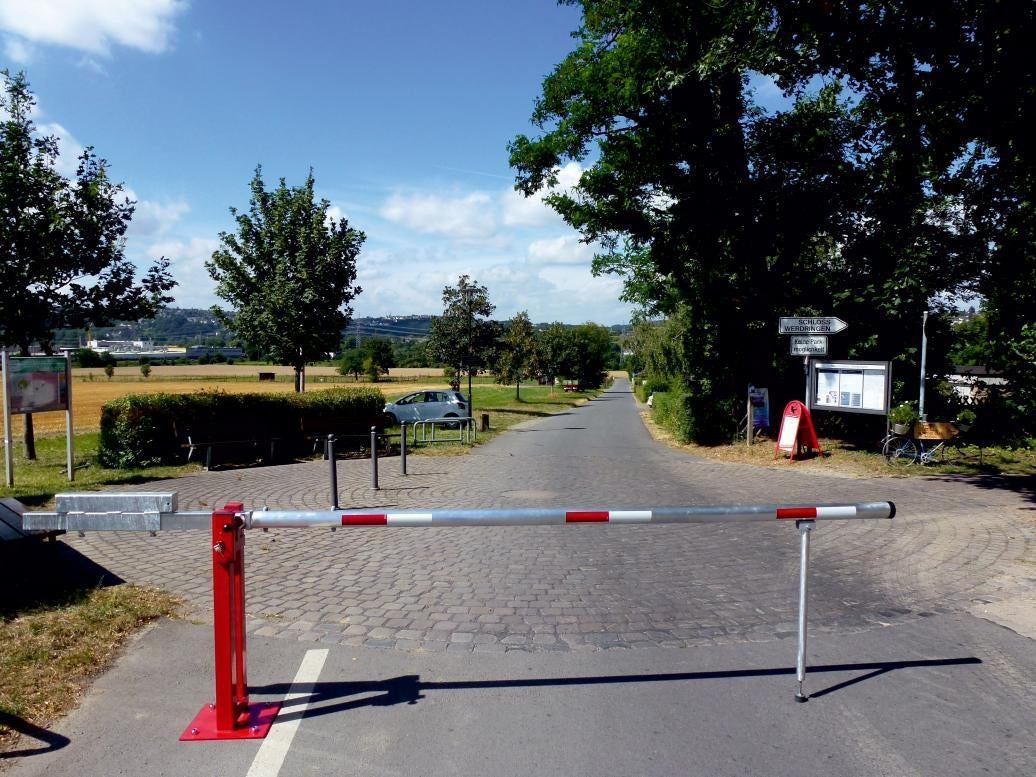

Access barrier with counterweight and swing post

Estimated Shipping Widget will be displayed here!

  • SKU 411_71VPB

This access barrier with counterweight and swing post offers a durable and practical solution for controlling vehicle access, securing traffic zones, and organizing pedestrian flow. Engineered for smooth operation, the barrier arm is supported by a robust counterweight system that ensures easy lifting and precise balance.

The main support structure is made from hot-dip galvanized steel, providing exceptional resistance to corrosion and long-term outdoor durability. A strong steel base plate with anchoring points ensures stable installation, while the thick-walled aluminium barrier arm delivers high strength with minimal weight. Reflective white/red markings enhance visibility in all lighting conditions.

A locking pin mechanism allows the arm to be securely fixed in the open or closed position, with compatibility for padlock, triangular lock (DIN 3223), or Euro profile cylinder lock.

Construction

  • Main support:

    • Steel square tube 70 × 70 mm

    • Ground plate 360 × 360 × 8 mm with 4 × Ø 20 mm anchoring holes

    • Hot-dip galvanized and powder-coated red

  • Barrier arm:

    • Thick-walled aluminium tube Ø 80 mm

    • Equipped with counterweight

    • Uncoated with white/red reflective stripes

  • Swing post:

    • Aluminium tube with foot

  • Height: Approx. 950 mm above ground

  • Total width: Clear width + approx. 900 mm

Operation

  • Smooth horizontal swing action

  • Locking mechanism at main support with locking pin

  • Secures arm in open or closed position

  • Compatible with:

    • Padlock

    • Triangular lock (DIN 3223)

    • Euro profile cylinder lock

Available Clear Widths

  • 3000 mm

  • 4000 mm

  • 5000 mm

  • 6000 mm

  • 7000 mm

Available Lock Options

  • For padlock

  • With triangular lock

  • With Euro profile cylinder lock

Download product documents (PDF)

Datasheet

Download datasheet (PDF)

Variants

Variant - Clear Width / Locking System Stock Quantity Price Total
Arm Barrier with Counterweight and Swing Post – Hot-Dip Galvanized
3000 mm / For Padlock 411_31VPB
$1,275.00 excl. sales tax
Out of stock Out of stock
$1,275.00 excl. sales tax
$0.00
Arm Barrier with Counterweight and Swing Post – Hot-Dip Galvanized
3000 mm / Triangular locking mechanism 411_31FPB
$1,457.00 excl. sales tax
Out of stock Out of stock
$1,457.00 excl. sales tax
$0.00
Arm Barrier with Counterweight and Swing Post – Hot-Dip Galvanized
3000 mm / Euro profile cylinder lock 411_31ZPB
$1,487.00 excl. sales tax
Out of stock Out of stock
$1,487.00 excl. sales tax
$0.00
Arm Barrier with Counterweight and Swing Post – Hot-Dip Galvanized
4000 mm / For Padlock 411_41VPB
$1,351.00 excl. sales tax
Out of stock Out of stock
$1,351.00 excl. sales tax
$0.00
Arm Barrier with Counterweight and Swing Post – Hot-Dip Galvanized
4000 mm / Triangular locking mechanism 411_41FPB
$1,533.00 excl. sales tax
Out of stock Out of stock
$1,533.00 excl. sales tax
$0.00
Arm Barrier with Counterweight and Swing Post – Hot-Dip Galvanized
4000 mm / Euro profile cylinder lock 411_41ZPB
$1,563.00 excl. sales tax
Out of stock Out of stock
$1,563.00 excl. sales tax
$0.00
Arm Barrier with Counterweight and Swing Post – Hot-Dip Galvanized
5000 mm / For Padlock 411_51VPB
$1,427.00 excl. sales tax
Out of stock Out of stock
$1,427.00 excl. sales tax
$0.00
Arm Barrier with Counterweight and Swing Post – Hot-Dip Galvanized
5000 mm / Triangular locking mechanism 411_51FPB
$1,609.00 excl. sales tax
Out of stock Out of stock
$1,609.00 excl. sales tax
$0.00
Arm Barrier with Counterweight and Swing Post – Hot-Dip Galvanized
5000 mm / Euro profile cylinder lock 411_51ZPB
$1,639.00 excl. sales tax
Out of stock Out of stock
$1,639.00 excl. sales tax
$0.00
Arm Barrier with Counterweight and Swing Post – Hot-Dip Galvanized
6000 mm / For Padlock 411_61VPB
$1,518.00 excl. sales tax
Out of stock Out of stock
$1,518.00 excl. sales tax
$0.00
Arm Barrier with Counterweight and Swing Post – Hot-Dip Galvanized
6000 mm / Triangular locking mechanism 411_61FPB
$1,700.00 excl. sales tax
Out of stock Out of stock
$1,700.00 excl. sales tax
$0.00
Arm Barrier with Counterweight and Swing Post – Hot-Dip Galvanized
6000 mm / Euro profile cylinder lock 411_61ZPB
$1,730.00 excl. sales tax
Out of stock Out of stock
$1,730.00 excl. sales tax
$0.00
Arm Barrier with Counterweight and Swing Post – Hot-Dip Galvanized
7000 mm / For Padlock 411_71VPB
$1,624.00 excl. sales tax
Backorder
$1,624.00 excl. sales tax
$0.00
Arm Barrier with Counterweight and Swing Post – Hot-Dip Galvanized
7000 mm / Triangular locking mechanism 411_71FPB
$1,806.00 excl. sales tax
Out of stock Out of stock
$1,806.00 excl. sales tax
$0.00
Arm Barrier with Counterweight and Swing Post – Hot-Dip Galvanized
7000 mm / Euro profile cylinder lock 411_71ZPB
$1,836.00 excl. sales tax
Out of stock Out of stock
$1,836.00 excl. sales tax
$0.00
